Physical Testing Equipments/Strength of Material

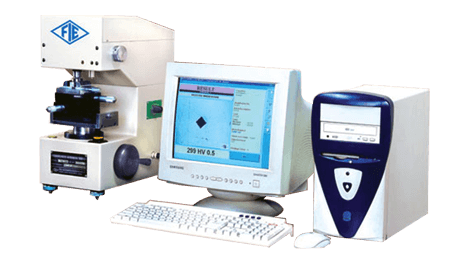

Computerised MICRO Vickers Hardness Tester

  • Fully Computerised (PC based) Micro Hardness Tester.
  • Direct and accurate measurement of micro hardness number using "State of the art" image processing technology.
  • Wide testing range : From soft metal such as lead up to hardest, like hardened steel.
  • High accuracy and repeatability of measurement at all loads.
  • Small size of indentation makes it a non destructive testing on finised components.
  • Load slection by external knob.
  • Motorised loading and unloading cycle.
  • Small loads allow testing of thin sheet metals.
Advanced Window 98 Based Software
  • Latest GUI features with user friendly software.

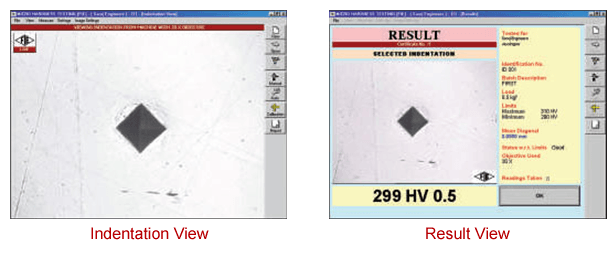

  • On line indentation setting and focusing on PC monitor.
Advanced Image Processing
  • Algorithms implemented for precise calculations of hardness numbers with various options to cover all ranges of specimens.
Batch File Processing
  • Option for data/ storage and reports generation for case depth analysis etc.
Statistical Evaluation
  • Software for calculating standard deviation, mean, medium, frequency distribution graph, variation graph etc. - Calibration mode facility.
Scope of Supply
  • Basic machine with CCD Camera, optics with illumination system and connecting cable.
  • PCI video capture card with driver software.
  • PC and Windows operating system is procured by customer. Minimum Pentium II with 64mb RAM & Window 98 / 98SE operating sytem required.
