Metrology Equipments

Shadow Image

Autocollimator

Autocollimator
SPECIFICATION
Model ACT-01 ACT-02/03 ACT-04 EACT
Focal Length 257 mm 430 mm 860 mm 287 mm
Clear Aperture 25 mm 35 mm 55 mm 25 mm
Readout Micronmeter Micronmeter Micronmeter RS 232/USB
Resolution 3 Sec 1 Sec 0.5 Sec 0.1/0.05 Sec
Accuracy over 1 Minute Range 6 Sec 2 Sec 1 Sec 0.2/0.1 Sec
Accuracy over full Range 30 Sec 10 Sec 5 Sec 1.0/0.5 Sec
Measurement Axis Single Dual Dual Dual
Range of Measurement +-30 Minutes +-20 Minutes +-10 Minutes +-6 Minutes
Magnification 16X 24X 48X -
Field of View 60 Minutes 40 Minutes 20 Minutes 12 Minutes
Max wrking Distance @ half field of view 3.0 Mts 4.5 Mts 9.0 Mts 10.0 Mts
Illumination LED LED LED Laser Diode
Power 220 V. 50 Hz 220 V. 50 Hz 220 V. 50 Hz 220 V. 50 Hz
Overall Length 365 mm 410 mm 520 mm 420 mm
Weight 4 Kgs 5.5 Kgs 11 Kgs 6 Kgs

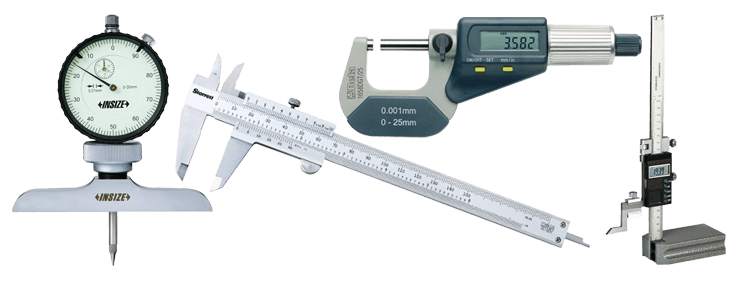

Vernier Caliper, Micrometer, Height Gauge and Depth Gauge

Vernier Caliper
